Grip Plate®

Plate

NFSI

SLIPNOT slip resistant plates are designed for applications requiring complete surface coverage, transforming the most demanding environments into safe and productive work zones. SLIPNOT plates provide a permanently safe alternative to slippery diamond plate. Request a floor plate sample today!

REQUEST A QUOTE

Product Information

  • Thicknesses: 1/8″ to 2″+
  • Stock Sizes:
4’x8’ 5’x8’ 6’x8’
4’x10’ 5’x10’ 6’x10’
4’x12’ 5’x12’ 6’x12’
  • Plates can be custom fabricated to meet job specifications available up to 72″ wide and 144″ long (larger sizes available)
  • Available SLIPNOT Alloys: Steel, Stainless Steel, and Aluminum
  • SLIPNOT Finishes: Mill, Painted, or Galvanized Steel
  • Plates are Available in: Grade 1 (Fine), Grade 2 (Medium), and Grade 3 (Coarse – Steel surface only)
  • Typical Alloys (other alloys available):
Steel A-36 A-572 Gr50
Stainless Steel 304 316
Aluminum 5052 6061
  • SLIPNOT products are registered by NSF International for use in food processing facilities
  • Installation Method:
    • Countersunk holes for fastening to supports
    • Weld to existing metal structures or framing
    • Plates can be provided with plug-weld holes on internal grid pattern for additional weld points

Advantages

  • Solid surface provides maximum traction area, continually meeting COF requirements

  • Many fabrication options and easily installed on project sites

  • Can retrofit over existing structures with minimum effort

CASE STUDIES

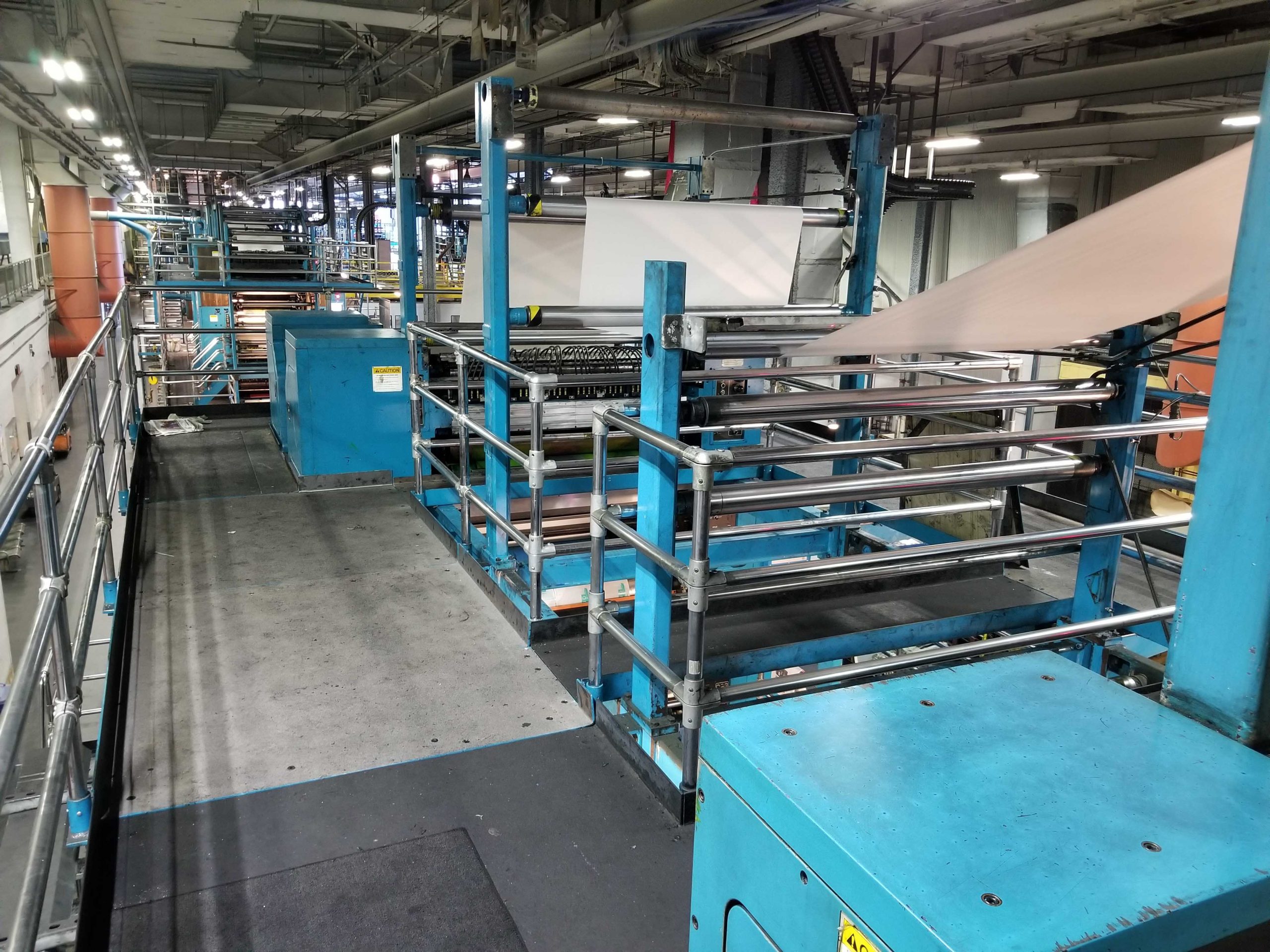

  • The New York Times
    • Location

      New York

    • Industry

      Pulp & Paper

    • Project Overview

      Slip resistant steel plates increasing worker efficiency at the New York Times printing facility

    • Solution

      Various sized 1/4" thick steel plate

    • Website

  • Toray Plastics
    • Location

      North Kingston, RI

    • Industry

      Manufacturing

    • Project Overview

      High traction steel plate creates safety on new and existing work platforms.

    • Solution

      Various sized 1/8" steel plate.

    • Website

      https://www.toraytpa.com/

  • Lift-A-Loft
    • Location

      Muncie, IN

    • Industry

      Aerospace

    • Project Overview

      Non slip stainless steel plates enhance the safety of Lift-A-Loft scissor lifts.

    • Solution

      Various sized 1/8" stainless steel plates

    • Website

      http://www.liftaloft.com

  • Automotive Manufacturer Press Plates
    • Industry

      Manufacturing

    • Project Overview

      Slip resistant steel plates installed for press operator safety at car manufacturing plant.

    • Solution

      32 pieces of ½” Grade 2 steel plate painted black

    • Website

  • Chevron Pascagoula Refinery
    • Location

      Pascagoula, MS

    • Industry

      Oil & Gas

    • Project Overview

      Non slip galvanized steel plate installed to protect equipment below from dripping water

    • Solution

      (1) 4' x 8' x 3/16" thick grade 2 galvanized steel plate

    • Website

      http://pascagoula.chevron.com/default.aspx

  • MacLean Curtis
  • SensoryEffects
    • Location

      Bridgeton, MO

    • Industry

      Food & Beverage

    • Project Overview

      Non slip stainless steel for food ingredient manufacturer

    • Solution

      (3) various sized stainless steel plates

    • Website

      http://sensoryeffects.com/

  • Plasan Carbon Composites
    • Location

      Walker, MI

    • Industry

      Manufacturing

    • Project Overview

      Anti Slip Steel Plates for Loading Area of Manufacturing Facility

    • Solution

      (5) 5' x 10' x 1/4" thick steel plates with SlipNOT® Grade 3 steel

    • Website

      http://plasancarbon.com/

  • Novartis Pharmaceuticals
    • Location

      East Hanover, NJ

    • Industry

      Commercial

    • Project Overview

      Aluminum plate installed over grating outside of office building

    • Solution

      (6) various sized 3/16" thick aluminum plates

    • Website

      https://www.pharma.us.novartis.com/

  • Autoliv Nissin Brake Systems
    • Location

      Findlay, OH

    • Industry

      Transportation

    • Project Overview

      Steel plates retrofitted over diamond plate to increase slip resistance and worker safety.

    • Solution

      (2) 30 1/6" x 39 13/16" x 1/2" thick steel plates with SlipNOT® Grade 2 steel

    • Website

  • Cadillac Casting, Inc.
    • Location

      Cadillac, MI

    • Industry

      Metals & Mining

    • Project Overview

      SlipNOT® Grade 3 steel plates provide slip resistance and durability.

    • Solution

      (3) 60" x 144" x 1/8" thick steel plates with Grade 3 steel

    • Website

      http://cadillaccasting.com/

  • NORPAC Foods, Inc.
    • Location

      Southeast Salem, OR

    • Industry

      Food & Beverage

    • Project Overview

      NORPAC Foods, Inc. installs SlipNOT® aluminum plates to increase safety.

    • Solution

      (19) 60" x 120" x 1/4" thick aluminum plates throughout facility

    • Website

      https://norpac.com/

  • Steel Technologies
    • Location

      Huger, SC

    • Industry

      Metals & Mining

    • Project Overview

      Work platform required a slip resistant surface

    • Solution

      (2) 3/16" thick 49" x 99" steel plates with SlipNOT® Grade 2 steel painted black

    • Website

      http://steeltechnologies.com/

  • Honda of Canada
    • Location

      Alliston, ON, CAN

    • Industry

      Transportation

    • Project Overview

      Customer Supplied Aluminum Plates Coated in Grade 2 SlipNOT® Steel

    • Solution

      Grade 2 Steel for (6) various sized 3/4" thick aluminum plates

    • Website

      https://www.honda.ca

  • Swiss Valley Farms
    • Location

      Monona, IA

    • Industry

      Food & Beverage

    • Project Overview

      High traction stainless treads to replace existing diamond plate staircase and operator platform

    • Solution

      (5) 3/16” x 4 x 10 & (5) 3/16” x 5 x 10 304 stainless steel treads and plates

    • Website

      http://www.swissvalley.com/index.cfm

  • The Lincoln Center
    • Location

      New York, NY

    • Industry

      Recreation

    • Project Overview

      Slip resistant stainless steel flooring on West 65th Street pedestrian bridge at the Lincoln Center.

    • Solution

      (65) 5/16” thick customer supplied Grade 2 316 stainless steel plates formed with 2” kick plates

    • Website

      http://www.lincolncenter.org/

  • Harpoon Brewery
    • Location

      Boston, MA

    • Industry

      Food & Beverage

    • Project Overview

      ADA compliant slip resistant aluminum plate for brewery walkways

    • Solution

      (28) 3/8” aluminum plates in custom sizes with a Grade 2 mill finish

    • Website

      https://www.harpoonbrewery.com/

  • Vantage Specialty Chemicals
    • Location

      Gurnee, IL

    • Industry

      Manufacturing

    • Project Overview

      Stainless steel plate retrofitted over existing diamond plate

    • Solution

      (1) 1/8" x 36" x 36'' Stainless Steel Plate & (1) 1/8" x 24" x 120'' Stainless Steel Plate

    • Website

      http://www.lambentcorp.com/

  • The Water Club at Borgata
    • Location

      Atlantic City, NJ

    • Industry

      Commercial

    • Project Overview

      3/16” x 69” x 96” 5052 Aluminum Plates with Stainless Steel SlipNOT® Surface

    • Solution

      The elevator flooring provides a slip resistant and durable surface for employees and residents.

    • Website

      https://www.theborgata.com/hotel/the-water-club

  • Honda Motor Company
    • Location

      Russel Point, OH

    • Industry

      Manufacturing

  • SugarCreek Packing
    • Location

      Hayward, CA

    • Industry

      Food & Beverage

    • Project Overview

      Non-slip stainless steel grating and treads for raised platform at SugarCreek Packing Plant

    • Solution

      (8) 1-1/4" x 3/16" x various stainless grating and treads

    • Website

      http://www.sugarcreek.com/

  • Marion Glass
    • Location

      Marion, IN

    • Industry

      Manufacturing

    • Project Overview

      Grade 2 steel coating applied to steel plates

    • Solution

      Grade 2 1/8" x 12" x 324" customer supplied steel plates

    • Website

  • Large Margarine Processing Facility
    • Location

      Kansas

    • Industry

      Food & Beverage

    • Project Overview

      Anti-slip stair treads and plate for conveyor cross over for large margarine processing facility.

    • Solution

      (1) ¼ x 24 x 30-1/16 304 stainless steel plate & (8) ¼ x 7 x 23-1/2 304 stainless steel stair treads

    • Website

  • Applied Minds KiraVan
    • Location

      Burbank, CA

    • Industry

      Transportation

    • Project Overview

      High traction CSM stainless steel plates for KiraVan

    • Solution

      (7) various sized 1/4" thick CSM stainless steel plates

    • Website

      http://kiravan.net/

  • Neuroscience Collaborative Center
  • Ford Motor Company
    • Location

      Livonia, MI

    • Industry

      Transportation

    • Project Overview

      Steel plates for top covers and around the assembly lines

    • Solution

      Cut-to-size steel plates coated with Grade 2 SlipNOT® steel

    • Website

      http:// www.ford.com

  • Packaging Plant
    • Location

      Telford, PA

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant steel plate replaced slippery flat bars on conveyer belt

    • Solution

      1/8” x 2” x 54” Grade 2 steel flat bars

    • Website

  • Superlift Material Handling
    • Location

      Kitchener, ON

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant stainless steel plates on airpower man lifts for a food processing facility

    • Solution

      Custom fabricated stainless steel plates

    • Website

      http://www.superlift.net/

  • Food Processing Facility
    • Location

      Idaho

    • Industry

      Food & Beverage

    • Project Overview

      Stainless steel plate and stair treads to replace slippery stairs and platforms

    • Solution

      Grade 2 stainless steel plate mill finish and Grade 2 stainless steel plate stair treads

    • Website

  • VELCO
    • Industry

      Utilities

    • Project Overview

      Slip resistant galvanized steel stair treads and plate installed on slick stairway

    • Solution

      3/16” x 12” x 36-3/8” Grade 2 galvanized steel stair treads and 3/16” x 41-3/4” x 60” Grade 2 galva

    • Website

      http:// www.velco.com/

  • Goodrich Gear Profiler
    • Industry

      Aerospace

    • Project Overview

      Steel plate replaces dimple plate flooring on and around Large Gear Profiler

    • Solution

      3/16” Grade 3 steel plate

    • Website

      http://www.goodrich.com

  • The Los Angeles Times
    • Location

      Los Angeles, CA

    • Industry

      Pulp & Paper

    • Project Overview

      Steel plate replaced dangerously slick diamond checker plate

    • Solution

      Grade 3 slip resistant 1/4" steel Grip Plate®

    • Website

      http://www.latimes.com

  • Alameda Naval Air
    • Location

      Alameda, CA

    • Industry

      Government

    • Project Overview

      ac plates on runways

    • Solution

      72” square steel plates, predrilled with bolt down holes

    • Website

  • CITGO
    • Location

      Cicero, IL

    • Industry

      Oil & Gas

    • Project Overview

      Floor plate used for walkways

    • Solution

      Steel plate with Grade 2 steel SlipNOT® coating applied

    • Website

      http:// www.citgo.com

  • General Mills
    • Location

      Joplin, MO

    • Industry

      Food & Beverage

    • Project Overview

      Stainless steel plate fabricated for a platform

    • Solution

      1/8” x 23-1/2” x 67-3/4” stainless steel plates Grade 2

    • Website

      http://www.generalmills.com

  • Altec
    • Location

      Birmingham, AL

    • Industry

      Utilities

    • Project Overview

      Landings and platforms on work trucks

    • Solution

      Cut-to-size 1/8” steel plate

    • Website

      http:// www.altec.com

  • SEPTA
    • Location

      Philadelphia, PA

    • Industry

      Infrastructure

    • Project Overview

      Galvanized steel nosings and plates for stairways and platforms

    • Solution

      Custom fabricated galvanized steel nosings and galvanized steel plates

    • Website

      http://www.septa.org

  • City of Portland
    • Location

      Portland, OR

    • Industry

      Infrastructure

    • Project Overview

      Aluminum plate utilized on floating bridges and docks

    • Solution

      Grade 2 aluminum plate

    • Website

      https://www.portlandoregon.gov/

  • Caterpillar Machinery
    • Location

      Aurora, IL

    • Industry

      Manufacturing

    • Project Overview

      Steel plates used for around a weld system

    • Solution

      Custom fabricated Grade 2 steel plates

    • Website

      http://www.cat.com

  • PathFinder Energy
  • DuSable Bridge
    • Location

      Chicago, IL

    • Industry

      Infrastructure

    • Project Overview

      Steel plates

    • Solution

      Steel plates used as a bridge walkway

    • Website

  • Plastic Mold Facility
    • Location

      Mt. Zion, IL

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant steel plates installed on Mold Shuttle Table

    • Solution

      Various measurements of 3/16” x 6-1/2” x 78-1/2” Grade 2 steel plates with (6) 5/16” countersunk ho

    • Website

  • International Paper
    • Location

      Rockford, IL

    • Industry

      Pulp & Paper

    • Project Overview

      Aluminum plates replaced slick decking on corrugator

    • Solution

      1/8” x 59” x 112” 6061-T6 and 1/8” x 59” x 74” 6061-T6 Grade 2

    • Website

      http://www.internationalpaper.com/

  • Beef Processing Plant
    • Industry

      Food & Beverage

    • Project Overview

      Work platforms, catwalks and processing areas

    • Solution

      ¼” stainless steel plates

    • Website

  • Airfloat
    • Location

      Decatur, IL

    • Industry

      Manufacturing

    • Project Overview

      Grade 2 Steel Plates Installed on Industrial Turntable

    • Solution

      14 pieces of 3/8” x 5’ x 10’ Grade 2 painted black steel plates

    • Website

  • LB Steel
    • Location

      Harvey, IL

    • Industry

      Manufacturing

    • Project Overview

      Steel Plates installed on Caterpillar equipment to add traction

    • Solution

      39 pieces of various sized 3/16” Grade 3 steel plate in a mill finish

    • Website

      http://www.lbsteel.com

  • Meridian Magnesium Die Casting
    • Location

      Eaton Rapids, MI

    • Industry

      Manufacturing

    • Project Overview

      Aluminum plate spanning a 12’ area in the manufacturing area

    • Solution

      1/8” 60” x 84” 5052 Aluminum Plates with the Grade 2 surface

    • Website

      http://www.meridian-mag.com

  • Worthington Cylinders
    • Location

      Columbus, OH & Cleveland, OH

    • Industry

      Manufacturing

    • Project Overview

      Non slip steel plates and perforated plate installed around die machine

    • Solution

      3/4” A36 Grade 2 and Grade 3 steel plates with a mill finish and Grade 2 steel perforated plate pai

    • Website

      http://www.worthingtoncylinders.com

  • Bremen Castings
    • Location

      Bremen, IN

    • Industry

      Manufacturing

    • Project Overview

      Steel floor plates installed over foundation pit

    • Solution

      22 pieces of 1/2” x 4’ x 8’ Grade 3 steel plates painted black

    • Website

      http://www.bremencastings.com

  • Cedar Point
    • Location

      Sandusky, OH

    • Industry

      Recreation

    • Project Overview

      Steel Plates Installed on Rollercoaster at Cedar Point

    • Solution

      (7) 3/16” x 4-1/2” x 43-3/4” Grade 2 Steel Plates with (1) 4-1/2” x 1-3/4” 45 degree bend

    • Website

      http://www.cedarpoint.com

  • SKF USA
    • Location

      Flowery Branch, GA

    • Industry

      Manufacturing

    • Project Overview

      Steel floor plate to replace hazardous diamond plate

    • Solution

      A36 steel plate

    • Website

      http:// www.skf.com

  • Ford Dearborn Plant
    • Location

      Dearborn, MI

    • Industry

      Manufacturing

    • Project Overview

      Steel walkway at the final assembly line

    • Solution

      Painted yellow steel plate

    • Website

  • Meridian Magnesium
    • Location

      Eaton Rapids, MI

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant steel plates installed on work platform at Meridian Magnesium Products

    • Solution

      ½” x 4’ x 8’ Grade 2 steel plates painted black

    • Website

  • Hurricane Sandy Relief
    • Location

      Coney Island, NY

    • Industry

      Recreation

    • Project Overview

      Slip resistant flooring for beachfront comfort stations

    • Solution

      Grade 2 316 stainless steel formed plates and stair treads

    • Website

  • SES Coil Cars
    • Location

      Alliance, OH

    • Industry

      Metals & Mining

    • Project Overview

      Slip resistant walking surfaces on galvanizing line coil cars.

    • Solution

      Various sized 1/8” Grade 2 steel plates painted black

    • Website

      http:// http://seseng.com/

  • Voortman Cookie
    • Location

      Burlington, ONT Canada

    • Industry

      Food & Beverage

    • Project Overview

      Treads for a portable staircase and fixed landings made from non slip stainless steel

    • Solution

      Two (2) 1/8” thick various sized 304 Stainless Steel Plates with kick plates and nosings, one (1) 1

    • Website

      http://www.voortman.com

  • Autoquip
    • Location

      New Mexico

    • Industry

      Government

    • Project Overview

      Slip resistant steel plate on a circular lift platform for Sandia National Laboratories

    • Solution

      1- 1/4" x 24" x 84" 2-1/4" x 24" x 66" 18-1/4" x 10" x 12" Grade 2 steel plates

    • Website

      https://www.autoquip.com

  • Exxel Pacific
    • Location

      Bellingham, WA

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant aluminum thresholds for horizontal waterproofing

    • Solution

      Grade 2 Aluminum Floor Plates

    • Website

      https://www.exxelpacific.com/

  • IntelliKinetics
    • Location

      Knoxville, TN

    • Industry

      Manufacturing

    • Project Overview

      Slip resistant aluminum plates installed on robot platforms at forging plant

    • Solution

      (40) custom cut ¼” x 11” x 71” Grade 2 5052 aluminum plates painted black

    • Website

      https:// www.intellikinetics.com

  • A&B Process Systems
  • Progressive Field
  • Monterey Bay Fish Grotto
    • Location

      Pittsburgh, PA

    • Industry

      Food & Beverage

    • Project Overview

      High traction painted black stair treads and steel plates leading to kitchen

    • Solution

      (2) ¼” thick steel plates & (35) ¼” thick steel stair treads painted black

    • Website

      https://montereybayfishgrotto.com/

  • Tweet Garot
    • Location

      Green Bay, WI

    • Industry

      Food & Beverage

    • Project Overview

      Creating a safe walking surface on a work platform and catwalk of a food processing plant.

    • Solution

      Custom ¼” 304 stainless steel plates

    • Website

      http://tweetgarot.com/

  • Scott Metals
    • Location

      Pittsburgh, PA

    • Industry

      Metals & Mining

    • Project Overview

      Steel plate installed on an entry hood on a hot finishing mill exhaust system

    • Solution

      3/16” x 72” x 102” Grade 2 steel plate and 3/16” x 48” x 90” Grade 2 steel plate

    • Website

      https:// www.scottmetals.com

  • Unilever USA
    • Location

      Jefferson City, MO

    • Industry

      Food & Beverage

    • Project Overview

      Slip resistant stainless steel flooring around tanks at Unilever

    • Solution

      (51) 1/4” x 4’ x 8’ Grade 2 316 stainless steel plates

    • Website

      https://www.unileverusa.com/

  • Engineered Fabrication
    • Location

      Watkinsville, GA

    • Industry

      Manufacturing

    • Project Overview

      Corrosion resistant robot platform at Engineered Fabrication, Inc.

    • Solution

      (7) 1/4” thick 5’ x 10’ 5052 Grade 2 aluminum floor plates

    • Website

      https://www.engfab.com/

  • CA Recycling Center
    • Industry

      Pulp & Paper

    • Project Overview

      Plate and stair treads installed on walkways leading to sorting machines

    • Solution

      Cut-to-size painted steel plates and stair treads

    • Website

      http://www.calrecycle.ca.gov/

  • Ann Arbor Hands-On Museum
    • Location

      Ann Arbor, MI

    • Industry

      Recreation

    • Project Overview

      High traction flooring on base of popular museum attraction

    • Solution

      ¼” x 26 ¾” aluminum base & ¼” x 15 ⅝” x 38 11/16” tread to be coated

    • Website

      http://www.aahom.org/

  • Duquesne Light
    • Location

      Pittsburgh, PA

    • Industry

      Utilities

    • Project Overview

      Retrofitting over slippery diamond plate ramps

    • Solution

      A-36 steel plates with 3/8" plug weld holes

    • Website

      http://www.duquesnelight.com

  • Ellwood City Forge
    • Location

      Ellwood City, PA

    • Industry

      Manufacturing

    • Project Overview

      Steel mill finish grating and plates over machine pits

    • Solution

      1” x 3/16” x 24” x 120” steel grating and 4' x 8' steel plates

    • Website

      http://www.ellwoodcityforge.com/Default.aspx
